CleanSwitch Lock white
Prices incl. VAT plus shipping costs
- Order number: 10001073
Talk to us: +49 7163 93926-77
Volume discounts on request by phone
Contact-free switch for convenient locking of entrances with strict hygiene and design requirements
Opening and locking doors
CleanSwitch Lock locks the access in a contact-free way in response to a deliberate gesture – and the door is kept closed.
The contact-free switch is therefore suitable for a wide range of applications where it is required to both open and lock doors, such as in health care facilities, laboratories and public sanitary areas. The CleanSwitch Lock is very easy to connect electrically to any door controller via a potential-free output.
Displaying door states

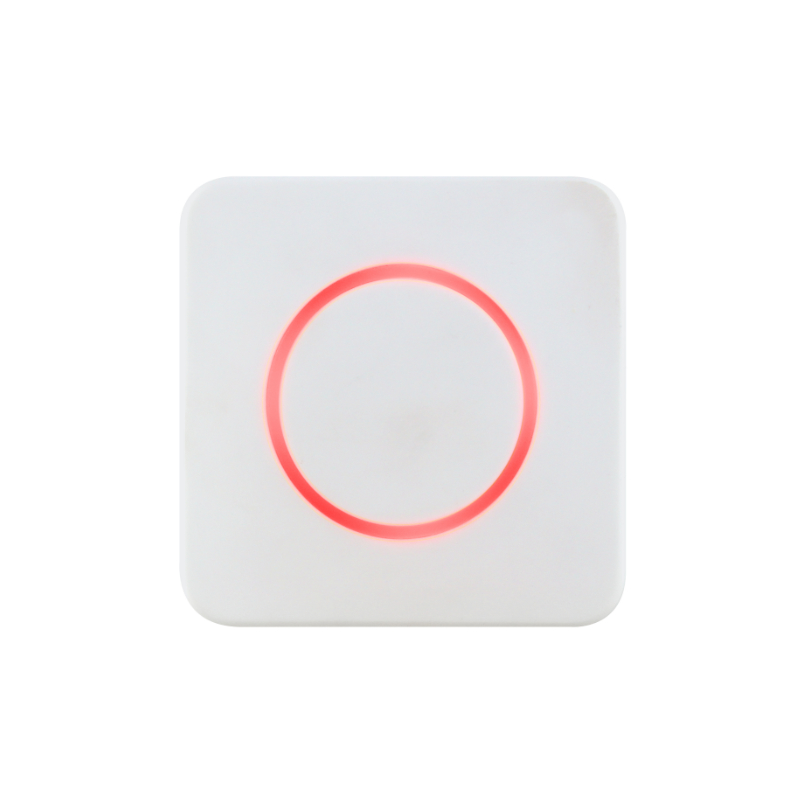

When the CleanSwitch Lock is integrated in a system, the switch LED display can be used to indicate the door state in a similar way to a traffic light control (red/green) in order to signal whether a WC or a lock is occupied. When locked, the CleanSwitch activation function is disabled to prevent the door from being opened either inadvertently or for unauthorised access. The CleanSwitch Lock also eliminates the need for additional components, display elements and locking systems.
Accustomed convenience and service
All basic functions of the CleanSwitch are also available with the CleanSwitch Lock. Installation is made easy thanks to intuitive operation and simple handling. The configuration table enables you to quickly customise individual pictograms, housing colours, accessories and switch ranges to suit your requirements.
Colour: Colour ofhousing: White, Black available on request
Coloured LED feedback: Blue, Green or red adjustable
Pictograms: Please find a wide selection of pictograms (Open, Closed, hand, wheelchair etc.)
Systems: Compatible with standard flush-munted boxes from the companies Jung, Feller, Hager and Gira on request.
- Colour ofhousing: White, Black available on request
- Operating voltage: 12…24 V AC/DC
- Effective detection range: 0.1 ... 0.5 m
- Signal output: Relay and additional locking output
- Connection: Terminal
- Degree of protection: IP65
- Tecnology: Radar, 24,125 GHz
- Accessories (not included): Surface box
