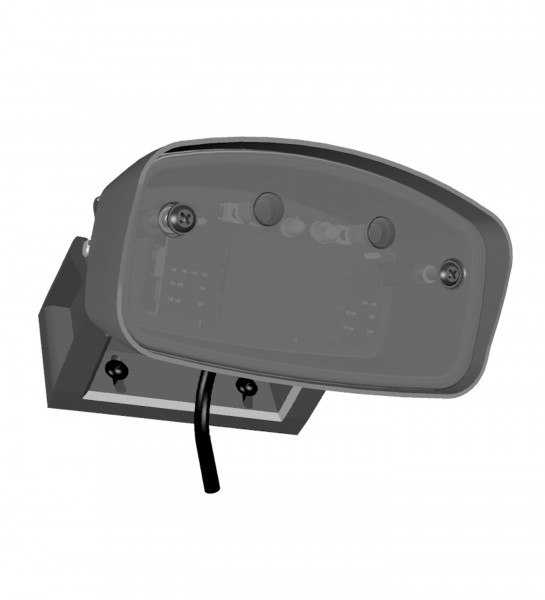

Rave-D-NA

This device can be used in the USA and North America only!

Radar motion sensor for opening pulse for gates. Degree of protection IP67, Differentiated detection of people and vehicles, each with one output relay, Cross-traffic suppression and rotation direction monitoring, Simplified adjustment options via remote control or integrated push buttons, Wall and ceiling mountable, Function: Open, Sensor principle: Radar sensor.

Technical specifications:

• Sensing range: 10 m x 5.5 m at installation height of 7 m and 45° angle
• Operating frequency: 24.075…24.175 GHz K-Band
• Operating voltage: 12…36 V DC, 12…28 V AC
• Switching type: NO/NC
• Signal output: 2 relay outputs
• Operating temperature: -20…60°C, -4…140°F
• Mounting height: max. 7 m
• Degree of protection: IP67
• FCC approval: FCC rules part 15 / This device can be used in the USA

p.n.: 285648
