Sensotek. Intelligent Sensor Solutions.

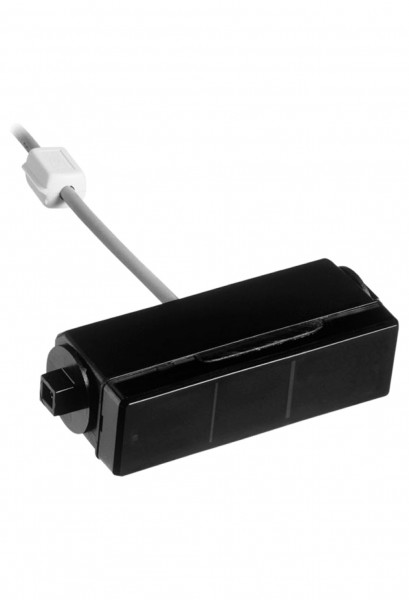

PROSCAN-T/32/76a

PROSCAN-T/32/76a
Total price: €297.75
Net price: €256.68

Prices incl. VAT plus shipping costs

Availability Ready to ship today,
Delivery time appr. 1-3 workdays

3 items in stock
  • 419579
Questions to the product?
Talk to us: +49 7153 60860-77
Volume discounts on request by phone
Version with E1 approval, Fan-shaped detection field with up to 12 beams, Adjustable detection... more
Product information "PROSCAN-T/32/76a"

Version with E1 approval,

Fan-shaped detection field with up to 12 beams, Adjustable detection fields for different door widths, Automatic drift compensation, Version with test input, Function: Open and secure, Sensor principle: Active infrared scanner

Technical specifications:

  • Verson with E1 approval
  • Operating voltage: 12…38 VDC
  • Detection field max.: 2,300 x 80 mm at mounting height 2 m
  • Mounting height: 1…2.5 m
  • Test input
  • Signal output: PNP-output, Open collector
  • Connection: Fixed able 5 m
  • Degree of protectiont: IP52
  • Accessories (included): Swivel, Mounting bracket
  • Accessories (not included): Weather Cap
Technical specification:
  • Function: Open, Open and secure, Secure
  • Sensor Principle: Active infrared scanner
