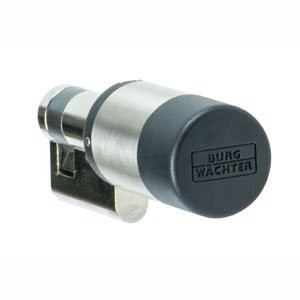

secuENTRY pro 7030 HALF

secuENTRY pro 7030 HALF
Total price: €318.92
Net price: €268.00

Prices incl. VAT plus shipping costs

Availability Ready to ship today,
Delivery time appr. 1-3 workdays

1 items in stock
  • 130-0001
Questions to the product?
Talk to us: +49 7163 93926-77
Volume discounts on request by phone
 Electronic cylinder for one direction use The secuENTRY pro 7030 HALF half cylinder is... more
Product information "secuENTRY pro 7030 HALF"

 Electronic cylinder for one direction use

The secuENTRY pro 7030 HALF half cylinder is not used for classic doors, but wherever only locking from one direction is used. For example, the electronic door cylinder is used for gates, garages, switch cabinets or barriers. The only prerequisite is a door thickness between 40 and 77.5 millimetres. The door cylinder can be adjusted to these widths.And the installation is very simple. Only the old mechanical door cylinder has to be removed by loosening the forend screw. Then the tamper-proof secuENTRY pro 7030 HALF can already be inserted. The half cylinder is then adjusted to the required door thickness in a few simple steps using the spacers supplied. The knob can then be fixed in place and nothing more stands in the way of its use.

Thanks to state-of-the-art technology, the secuENTRY pro 7030 HALF can be opened in different ways. This means that everyone can decide on their preferred opening variant. Whether for the active transponder (Bluetooth), the passive transponder (RFID), the key app for the smartphone (Bluetooth) for iOS and Android or additionally for the door opening via the keypad in two variants - with code or additionally with opening via finger scan. The secuENTRY system offers enormous variability and can therefore be used extremely flexibly. The secuENTRY pro 7030 HALF is approved as an anti-panic cylinder for escape doors.Furthermore, many other features can be managed via the optional software. For example, rights assignment, user and group administration as well as a time, calendar and visitor transponder function. In this way, everyone can decide for themselves which person is allowed to open the electronic door lock at which time and on which days. Of course, the locking history of the secuENTRY pro 7030 HALF can also be read out.

The secuENTRY pro 7030 half cylinder can also be used as an anti-panic cylinder for escape doors with anti-panic function. As standard with freewheeling and panic function FZG according to the guideline FZG, edition 2020-07-06 of the PIV. This means: A door can be opened from the inside at any time in an emergency (e.g. in the event of a fire), even if it is locked and therefore cannot be opened from the outside. (The cylinder fulfils the requirement of the class of panic function F2 and FZG from DIN 18252:2018-05. Tested by the Prüfinstitut Schlösser und Beschläge Velbert (PIV)).

Technical specifications:

• Electronic cylinder for up to 2000 users
• Identification media:
– Pincode: 2000 users
– Fingerprint: 200-300 users, including 45 Premium fingers
– Passive transponder: 2000 users
– Smart devices: 2000 users
• History functions: 2000 events


Function via optional software:

• User or group administration
• Time and calendar function
• Assignment of authorisations
• History function
• Visitor transponder function
