RL91-54-RT/49/59/115

RL91-54-RT/49/59/115
Total price: €143.78
Net price: €120.82

Prices incl. VAT plus shipping costs

Availability Ready to ship today,
Delivery time appr. 1-3 workdays

2 items in stock
  • 419069
Questions to the product?
Talk to us: +49 7163 93926-77
Volume discounts on request by phone
Retroreflective sensor for single-beam closing edge protection, Narrow housing suitable for... more

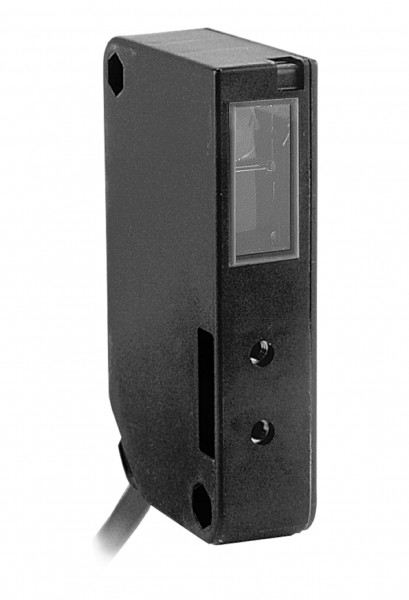

Product information "RL91-54-RT/49/59/115"

Retroreflective sensor for single-beam closing edge protection, Narrow housing suitable for small gaps, Sturdy plastic housing, Various possibilities for mounting, Version with red light, Operating voltage: 12 ... 30 V DC, Signal output: 1 NPN, 1 PNP synchronized-switching, short-circuit protected, reverse polarity protected, Connection: 5 m fixed cable, Degree of protection: IP65

Technical specifications:

  • Effective detection range: 4 m
  • Operating voltage: 10…30 VDC
  • Signal output:  1 NPN, 1 PNP synchronized-switching, short-circuit protected, reverse polarity protected
  • Connection: Fixed Cable 5 m
  • Degree of protection: IP65
Technical specification:
  • Housing Material: Plastic
  • Approvals: UL
  • Power Supply: DC
  • Electrical Connection Type: Fixed cable
  • Housing Style: Rectangular type
  • Working Voltage: DC
  • Switching Output: NPN, PNP, PNP/NPN
  • Detection principe: Optic
  • Light Type: Red light
  • Function: Secure
  • Output Type: PNP/NPN
  • Degree of Protection: IP65
  • Max. Detection Range: 3 m ... < 5 m
  • Cubic standard version: approx. 50x20x85 mm (RL91)
