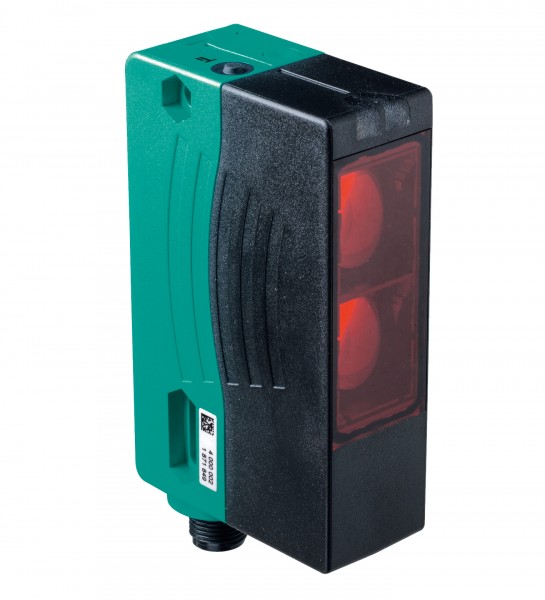

OBR50M-R300-2PP-V1

Reflexlichtschranke bis 50 m Reichweite
Total price: €232.00
Net price: €200.00

Prices incl. VAT plus shipping costs

Availability Ready to ship today,
Delivery time appr. 1-3 workdays

2 items in stock
  • 254271
Questions to the product?
Talk to us: +49 7153 60860-77
Volume discounts on request by phone
Retroreflective sensor, Pulse Ranging Technology (PRT), Optimized for use with fixed reflectors,... more
Product information "OBR50M-R300-2PP-V1"

Retroreflective sensor, Pulse Ranging Technology (PRT), Optimized for use with fixed reflectors, Good alignability due to red transmission LED, Reliable detection of reflecting metall objects, Simple operation with only one TEACH-IN button

Technical specification:

• Detection range: max. 50 m on 3 reflectors REF-H100
• Operating voltage: 10 – 30 VDC
• Signal output: 2 push-pull outputs, short-circuit protected
• Connection: Connector M12, 4 pin (V1)
• Light: Red light
• Accessories (not included): Female cordset M12  (V1 or V15)

Technical specification:
  • Housing Material: Plastic
  • Degree of Protection: IP67
  • Approvals: UL
  • Power Supply: DC
  • Housing Style: Rectangular type
  • Working Voltage: DC
  • Detection principe: Optic
  • Light Type: Red light
  • Output Type: PNP/NPN
  • Electrical Connection Type: Connector plug M12
  • Max. Detection Range: ≥ 50 m
  • Cubic standard version: Others
  • Switching Output: Push-pull
  • Special: Teach-In
