RL80-54/25/31/115 SET
Total price: €90.90
Net price: €76.39 Prices incl. VAT plus shipping costs
Availability Ready to ship today,
Delivery time appr. 1-3 workdays
3 items in stock
- Order number: 303343
Questions to the product?
Talk to us: +49 7163 93926-77
Volume discounts on request by phone
Talk to us: +49 7163 93926-77
Volume discounts on request by phone
Reflector REF-H88x25included Retroreflective sensor with polarization filter and foreground... more

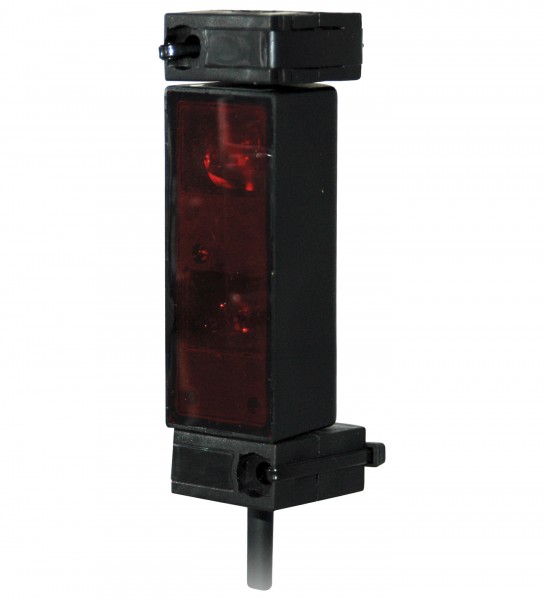

Product information "RL80-54/25/31/115 SET"
Reflector REF-H88x25included
Retroreflective sensor with polarization filter and foreground suppression for suppressing reflective objects, Relay output
Technical specifications:
- Effective detection range: REF-H88x25: 0 ... 6 m
- Operating voltage: 12...24 V AC/DC
- Signal output: Relay, NC contacted
- Relay energized: Light beam is not interrupted
- Connection: Fixed Cable 2 m
- Degree of protection: IP65
- Accessories (included): Reflector REF-H88x25, Screws: 2 x DIN 7985 M4 x 35 und 2 x DIN 7981 3,9 x 35
PN: 303343
Technical specification:
- Housing Material: Plastic
- Degree of Protection: IP65
- Output Type: Relays
- Detection principe: Optic
- Housing Style: Rectangular type
- Power Supply: AC
- Electrical Connection Type: Fixed cable
- Max. Detection Range: 5 m ... < 10 m
- Special: Foreground suppression, Polarization filter
- Light Type: Red light
- Working Voltage: AC, AC/DC, DC
- Switching Output: Relays
- Cubic standard version: Others
