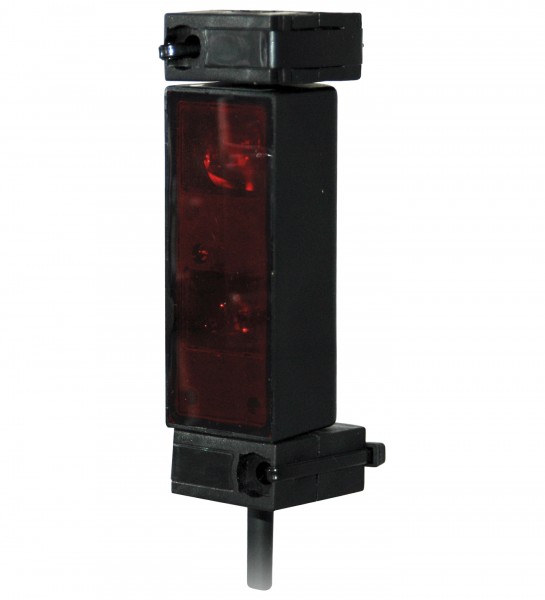

RL80-54/25/76b/103/115 SET
Total price: €90.90
Net price: €76.39 Prices incl. VAT plus shipping costs
Availability Ready to ship today,
Delivery time appr. 1-3 workdays
1 items in stock
- Order number: 303346
Questions to the product?
Talk to us: +49 7163 93926-77
Volume discounts on request by phone
Talk to us: +49 7163 93926-77
Volume discounts on request by phone
Reflector REF-H88x25 included Retroreflective sensor with polarization filter and foreground... more
Product information "RL80-54/25/76b/103/115 SET"
Reflector REF-H88x25 included
Retroreflective sensor with polarization filter and foreground suppression for suppressing reflective objects, PNP-output, Test input
Technical specifications:
- Effective detection range: REF-H88x25: 0 ... 6 m
- Operating voltage: 10…30 VDC
- Test input
- Signal output: PNP-output, open collector
- Connection: Fixed Cable 2 m
- Degree of protection: IP65
- Accessories (included): Reflector REF-H88x25, Screws: 2 x DIN 7985 M4 x 35 und 2 x DIN 7981 3,9 x 35
PN: 303346
Technical specification:
- Housing Material: Plastic
- Output Type: PNP
- Power Supply: DC
- Electrical Connection Type: Fixed cable
- Housing Style: Rectangular type
- Switching Output: PNP
- Detection principe: Optic
- Light Type: Red light
- Special: Foreground suppression, Polarization filter, Test input
- Degree of Protection: IP65
- Max. Detection Range: 5 m ... < 10 m
- Cubic standard version: Others
