RL81-54/25/76b/103/115 SET
Total price: €100.17
Net price: €84.18 Prices incl. VAT plus shipping costs
Availability Ready to ship today,
Delivery time appr. 1-3 workdays
2 items in stock
- Order number: 303380
Questions to the product?
Talk to us: +49 7163 93926-77
Volume discounts on request by phone
Talk to us: +49 7163 93926-77
Volume discounts on request by phone
Version with Test input, PNP-output and Reflector included This Retroreflective sensor... more
Product information "RL81-54/25/76b/103/115 SET"
Version with Test input, PNP-output and Reflector included

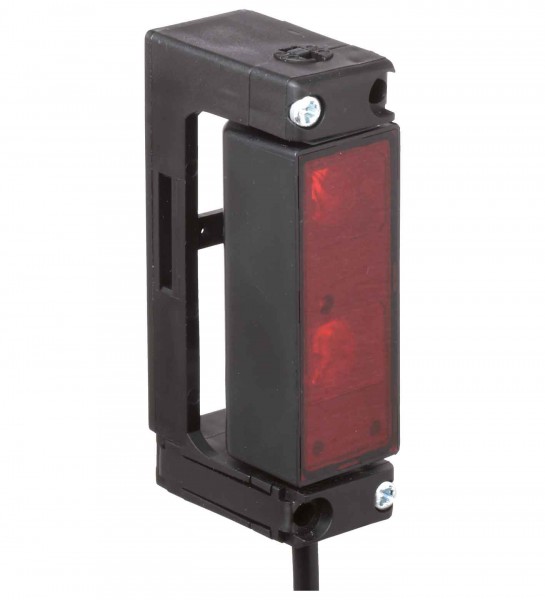

This Retroreflective sensor has a special U-shaped mounting aid for all of the mounting situations.
Retroreflective sensor with polarization filter and foreground suppression for suppressing reflective objects, PNP-output, Test input, Supplied with reflector
2 screws and reflector REF-H88x50 with screw kit included.
Test input function: Emitter deactivation at 0 V and if test input is left unconnected. This means Test input should be connected with operating voltage for function!
Technical spezifications:
- Effective detection range: 0 m … 12 m with reflector REF-H88x50 (included)
- Operation voltage: 10 … 30 V DC
- Signal output: PNP-output, short-circuit protected, open collector
- Test input
- Connection: Fixed cable 2 m
- Ambient temperature: -30 °C … +60 °C
- Degree of protection: IP65
- Accessories (included): 2 screws and reflector REF-H88x50 with screw kit
P.N.: 303380
Technical specification:
- Housing Material: Plastic
- Output Type: PNP
- Power Supply: DC
- Electrical Connection Type: Fixed cable
- Housing Style: Rectangular type
- Switching Output: PNP
- Detection principe: Optic
- Light Type: Red light
- Max. Detection Range: 10 m ... < 15 m
- Special: Foreground suppression, Polarization filter, Test input
- Degree of Protection: IP65
- Cubic standard version: Others
