SE 35.55 TTLa Serial edge
- Order number: 114-0111
Questions to the product?
Talk to us: +49 7163 93926-77
Volume discounts on request by phone
Talk to us: +49 7163 93926-77
Volume discounts on request by phone
Pre-made Contact Edge SENTIR edge 35.55 TTLa in the version serial edge with single-sided... more
Product information "SE 35.55 TTLa Serial edge"
Pre-made Contact Edge SENTIR edge 35.55 TTLa in the version serial edge with single-sided outwards sealing lip incl. C-base aluminium mounting profile Al 35-14
Serial edge: Both sides with 2.5 m connection cable. For other length of connection cable there are additional costs:
- 5.0 m 4.98 Euro
- 10 m 13.02 Euro
Length: Please feel free to order the length in the range of 100 mm to 15 m.
Technical specifications
- Dimensions: W 35 mm x H 55/71 mm
- Electrical capacity: 24 V, 10 mA
- Temperatur range: -25 °C...+55 °C
- Profile: TPE black, Material hardness 68 Shore A

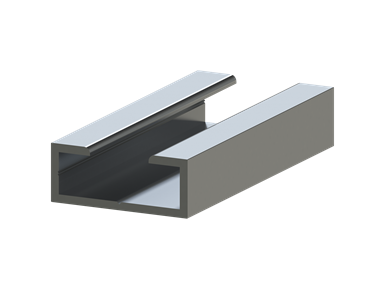

- C-profile: Alu-C-profile AL 35-14
- Actuating force: 59.2 N
- Actuation distance: 5.7 mm
- Overtravel distance to 250 N: 25.7 mm
- Overtravel distance to 400 N: 29,5 mm
Tested according DIN EN 1760-2:2001 / Actuating Point 1 / 10 mm/s / 20°
