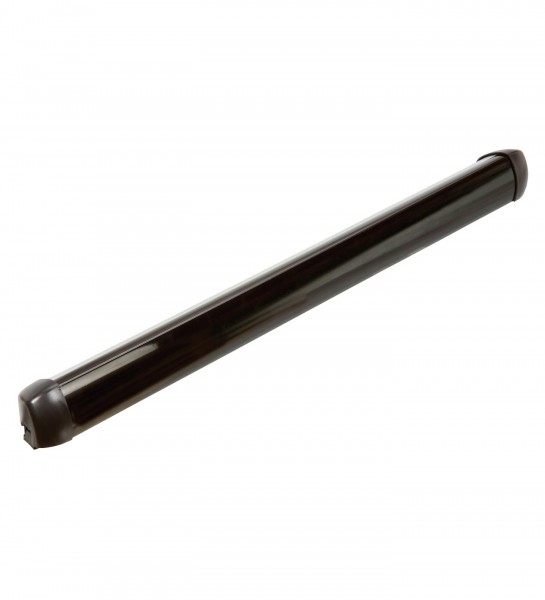

DoorScan-DS-4P-1600

DoorScan-DS-4P-1600
Total price: €735.49
Net price: €618.06

Prices incl. VAT plus shipping costs

Availability Ready to ship today,
Delivery time appr. 1-3 workdays

more than 10 items in stock
  • 299666
Questions to the product?
Talk to us: +49 7153 60860-77
Volume discounts on request by phone
Moving presence sensor for automatic doors, SIL 2, certified in accordance with DIN 18650/EN... more
Product information "DoorScan-DS-4P-1600"

Moving presence sensor for automatic doors, SIL 2, certified in accordance with DIN 18650/EN 16005, Exceptional detection reliability, Reliable operation with all floor coverings, Complete protection up to the wall without sensor shutoff.



Technical specifications:

• 2 Sensing light curtains for swinging doors until 1,400 mm
• Mounting height max. 3,500 m
• Standby mode
• SIL 2, certified in accordance with DIN 18650/EN 16005
• Exceptional detection reliability
• Reliable operation with all floor coverings
• Complete protection up to the wall without sensor shutoff
• Additional protection of the main and secondary closing edges
• Tool-free module mounting using snap-in mechanism
• Switchable NPN or PNP outputs
• Test input High/Low and active/passiv  switchable





Version 2017 with inverse-polarity protection and new generation of transmitter LED





P.N.299666



Technical specification:
  • Function: Active infrared scanner, Open, Open and secure, Secure
  • Sensor Principle: Active infrared scanner
  • Performance Level: PL d
  • Safety Integrity Level: SIL 2
