Sensotek. Intelligent Sensor Solutions.

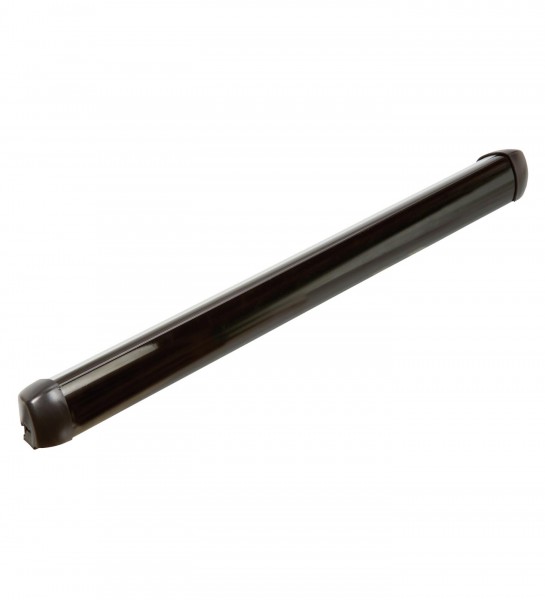

TOPSCAN2-8-HS-2500-1/L900/38a

Tastender Lichtvorhang Profillänge 900 mm
Total price: €257.29
Net price: €216.21

Prices incl. VAT plus shipping costs

Availability Ready to ship today,
Delivery time appr. 1-3 workdays

2 items in stock
  • 194127
Questions to the product?
Talk to us: +49 7163 93926-77
Volume discounts on request by phone
Moving presence sensor for swing doors and doors for public traffic , Configurable for a wide... more
Product information "TOPSCAN2-8-HS-2500-1/L900/38a"

Moving presence sensor for swing doors and doors for public traffic , Configurable for a wide range of door leaf widths, Each beam can be adjusted individually, Selectable background suppression and evaluation, Beam adjustment to closing edge width, Function: Open and secure, Sensor principle: Active infrared scanner

Technical specifications:

• 1-beam version, Length 900 mm
• Operating voltage: 17 ... 30 V DC, 18 ... 28 V AC
• Switchable background suppression / evaluation
• Test input
• Maximum mounting height: 2,500 mm
• Adjustment for each beam: Closing edge, angle, detection range,
• Signal output: Relay, 1 alternator

Technical specification:
  • Function: Open, Open and secure, Secure
  • Sensor Principle: Active infrared scanner
