ML30-P/25/102/115

ML30-P/25/102/115
Total price: €86.62
Net price: €72.79

Prices incl. VAT plus shipping costs

Availability Ready to ship today,
Delivery time appr. 1-3 workdays

more than 10 items in stock
  • 207415
Questions to the product?
Talk to us: +49 7153 60860-77
Volume discounts on request by phone
Single-beam monitoring with extremely narrow sensor, Simple installation - Plug & Play, Ideal... more
Product information "ML30-P/25/102/115"

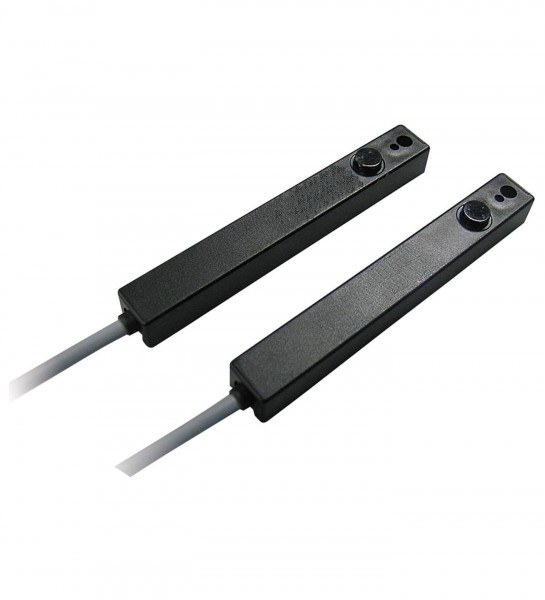

Single-beam monitoring with extremely narrow sensor, Simple installation - Plug & Play, Ideal for installation in door profiles or frames

Technical specifications:

  • Version with 2 mounting holes
  • Operating voltage: 10 ... 32 V DC
  • Effective detection range: 6 m
  • Signal output: 1 NPN output, short-circuit protected, reverse polarity protected, open collector
  • Connection: Fixed cable 6 m
  • Degree of protection: IP65
Technical specification:
  • Housing Material: Plastic
  • Power Supply: DC
  • Electrical Connection Type: Fixed cable
  • Housing Style: Rectangular type
  • Light Type: Infrared light
  • Working Voltage: DC
  • Detection principe: Optic
  • Special: Test input
  • Switching Output: NPN
  • Output Type: NPN
  • Degree of Protection: IP65
  • Sensor Principle: Thru-beam sensor
  • Max. Detection Range: 3 m ... < 10 m
  • Cubic standard version: Others
