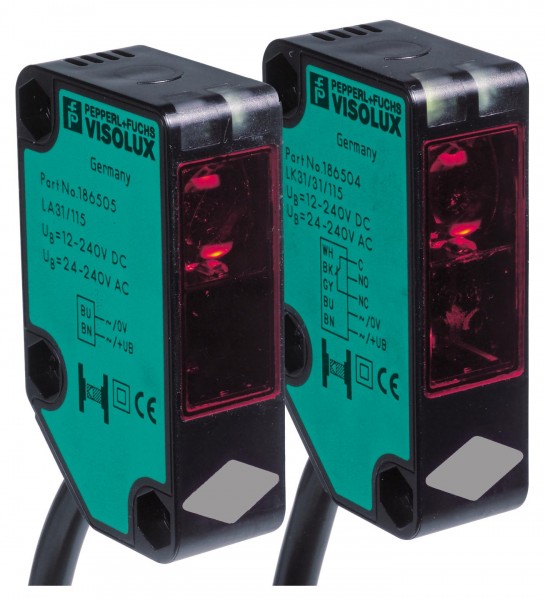

LA31/LK31/25/31/115 SET2

Einweglichtschranke LA31
Total price: €166.80
Net price: €140.17

Prices incl. VAT plus shipping costs

Availability Ready to ship today,
Delivery time appr. 1-3 workdays

5 items in stock
  • 213224
Questions to the product?
Talk to us: +49 7163 93926-77
Volume discounts on request by phone
Series 31 is a range of cost-effective and, most importantly, reliable photoelectric sensors for... more
Product information "LA31/LK31/25/31/115 SET2"

Series 31 is a range of cost-effective and, most importantly, reliable photoelectric sensors for standard applications in the fields of material handling and logistics, and for monitoring industrial doors, elevators, and automatic gates. The ultrasonic-welded plastic housing provides a high degree of protection, making these sensors ideal for tasks in harsh outdoor conditions. These sensors are currently the most compact "wide range power supply sensors" that can work with any DC and AC voltage between 24 V and 240 V. In addition to the robust technology, the sensors
offer numerous product details that help the user with assembly, connection and operation.
Version with another frequency F2 to prevent influence to another thru-beam sensor.

Technical specifications:

  • Operating voltage: 24…240 VAC, 12…240 VDC
  • Effective detection range: 30 m
  • Signal output: Relay, 1 alternator
  • Connection:Fixed cable 2 m
  • Degree of protection: IP67
  • Accessories (included): 2 mounting brackets OMH-RL31-05, stainless steel; mounting accessories

PN: 213224

Technical specification:
  • Housing Material: Plastic
  • Max. Detection Range: 30 m ... < 50 m
  • Cubic standard version: approx. 35x18x62 mm (RL31)
  • Switching Output: Relays
  • Working Voltage: AC, AC/DC, DC
  • Light Type: Red light
  • Function: Secure
  • Degree of Protection: IP67
  • Electrical Connection Type: Fixed cable
  • Power Supply: AC
  • Approvals: CCC, EAC
  • Housing Style: Rectangular type
  • Detection principe: Optic
  • Output Type: Relays
  • Sensor Principle: Thru-beam sensor
