Sensotek. Intelligent Sensor Solutions.


Einweg-Lichtschranke BB10
Total price: €95.65
Net price: €80.38

Prices incl. VAT plus shipping costs

Availability Ready to ship today,
Delivery time appr. 1-3 workdays

4 items in stock
  • 809330
Questions to the product?
Talk to us: +49 7163 93926-77
Volume discounts on request by phone
Single-beam miniature photoelectric sensor , ideal for installing in frames or contours,... more
Product information "BB10-P/33/59/76b/102/115-7m"

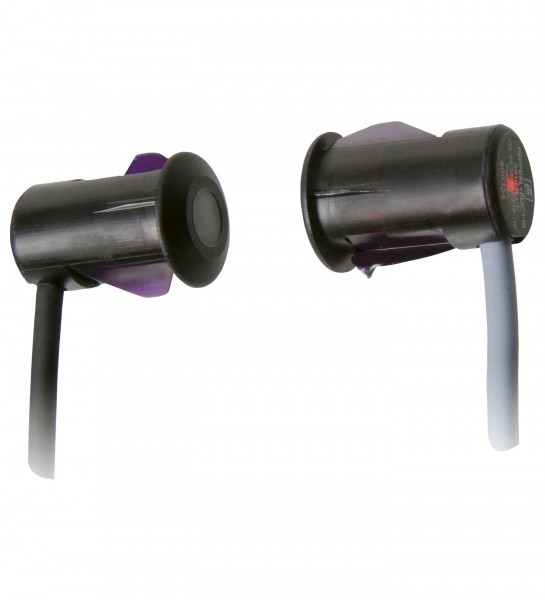

Single-beam miniature photoelectric sensor, ideal for installing in frames or contours, Integrated circuit, Plug-in style housing for 13 mm hole, Narrow opening angle, suitable for mounting in pairs, Light on version, Construction type(S2): Cylindrical type, flat, Housing: PC , black, Light type: modulated infrared light , 880 nm, Operating voltage: 10 ... 30 V DC, Signal output: 1 NPN output, short-circuit protected, reverse polarity protected, open collector

Technical specifications:

  • Operating voltage: 10..30 VDC,
  • Effective detection range: 6 m
  • Output: 1 NPN-Output, open collector, dark switching
  • Test input
  • Connection: fixed cable 7 m
  • Degree of protection: IP67

PN: 809330

Technical specification:
  • Housing Material: Plastic
  • Special: Emitter deactivation, Test input
  • Approvals: Car approval, E1 type approval
  • Cylindrical Version: Cylindrical, smooth (BB10)
  • Max. Detection Range: 3 m ... < 10 m
  • Sensor Principle: Thru-beam sensor
  • Output Type: NPN
  • Switching Output: NPN
  • Degree of Protection: IP67
  • Function: Secure
  • Detection principe: Optic
  • Working Voltage: DC
  • Light Type: Infrared light
  • Housing Style: Cylindrical
  • Electrical Connection Type: Fixed cable
  • Power Supply: DC
