LD28/LV28-F1/47/74/76a

Einweglichtschranke LD28/LV28 Sensotek
Total price: €284.92
Net price: €245.62

Prices incl. VAT plus shipping costs

Availability Delivery time approx. 5 working days

Not in stock
  • 116632
Questions to the product?
Talk to us: +49 7153 60860-77
Volume discounts on request by phone
Universal thru-beam sensor, large housing design, 30 m detection range, red light, 25 kHz... more
Product information "LD28/LV28-F1/47/74/76a"

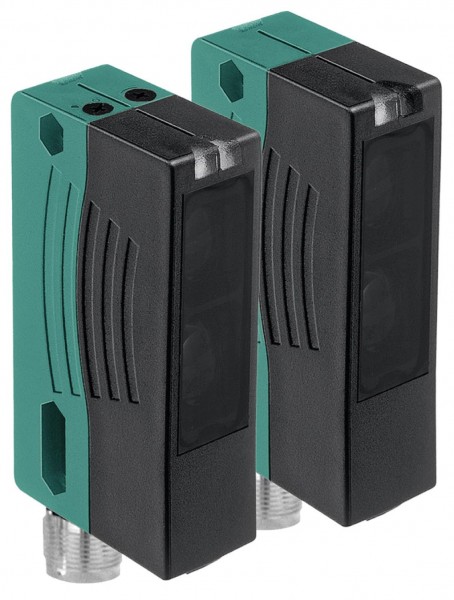

Universal thru-beam sensor, large housing design, 30 m detection range, red light, 25 kHz transmission frequency, light/dark on, DC version, 2 PNP outputs, test input, pre-fault output, M18 plug

Replacement for Thru-beam sensors with M18 connector.

Technical specifications:

  • Effective detection range: 30 m
  • Operating voltage: 10 – 30 VDC
  • Test input
  • Output: 2 PNP-outputs, short circuit protected, open collectors
  • Connection: connector M18x1, 4-pin
  • Degree of protection: IP67
  • Accessories (not included): Female connector M18, mounting bracket
Technical specification:
  • Housing Material: Plastic
  • Special: Emitter deactivation, Light-on/dark-on changeover switch, Sensitivity adjustment, Test input
  • Switching Output: PNP
  • Working Voltage: DC
  • Light Type: Red light
  • Max. Detection Range: 30 m ... < 50 m
  • Degree of Protection: IP67
  • Electrical Connection Type: Connector plug M18
  • Power Supply: DC
  • Approvals: UL
  • Housing Style: Rectangular type
  • Detection principe: Optic
  • Output Type: PNP
  • Cubic standard version: approx. 54x26x88 mm (RL28)
