LA31/LK31/25/31/115
Total price: €152.94
Net price: €128.52 Prices incl. VAT plus shipping costs
Availability Delivery time approx. 5 working days
Not in stock
- Order number: 186501
Questions to the product?
Talk to us: +49 7163 93926-77
Volume discounts on request by phone
Talk to us: +49 7163 93926-77
Volume discounts on request by phone

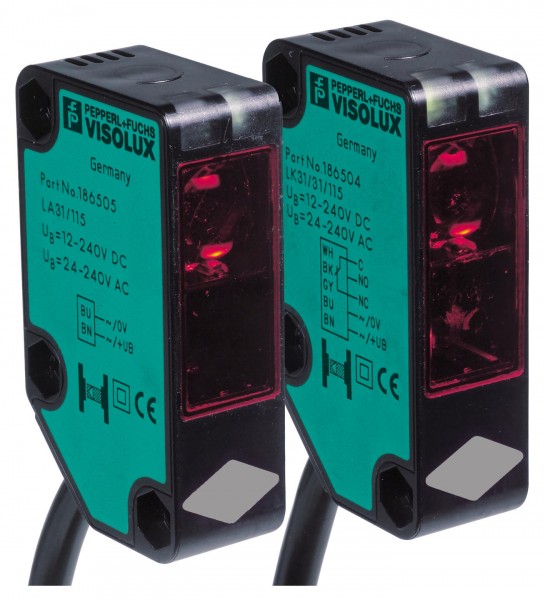

Thru-beam sensor, 30 m detection range, red light, light on, sensitivity adjustment, AC/DC... more
Product information "LA31/LK31/25/31/115"
Thru-beam sensor, 30 m detection range, red light, light on, sensitivity adjustment, AC/DC version, relais output, fixed cable, Cost-optimized series for standard tasks, Large construction with small housing, Highly visible LED, Version for universal voltages, Relay output
Technical specifications:
- Operating voltage: 24…240 VAC, 12…240 VDC
- Effective detection range: 30 m
- Output: Relay, NO/NC
- Connection: Fixed cable 2 m
- Degree of protection: IP67
PN: 186501
Technical specification:
- Housing Material: Plastic
- Degree of Protection: IP67
- Output Type: Relays
- Detection principe: Optic
- Housing Style: Rectangular type
- Approvals: CCC, EAC
- Power Supply: AC
- Electrical Connection Type: Fixed cable
- Max. Detection Range: 30 m ... < 50 m
- Light Type: Red light
- Working Voltage: AC, AC/DC, DC
- Switching Output: Relays
- Cubic standard version: approx. 35x18x62 mm (RL31)
