LD28-F1/76a/105

LD28-F1/76a/105
Total price: €129.42
Net price: €111.57

Prices incl. VAT plus shipping costs

Availability Ready to ship today,
Delivery time appr. 1-3 workdays

2 items in stock
  • 109980
Questions to the product?
Talk to us: +49 7153 60860-77
Volume discounts on request by phone
Transmitter for thru-beam sensor LD28/LV28-F1/47/76a/82b/105 the receiver is PN ... more
Product information "LD28-F1/76a/105"

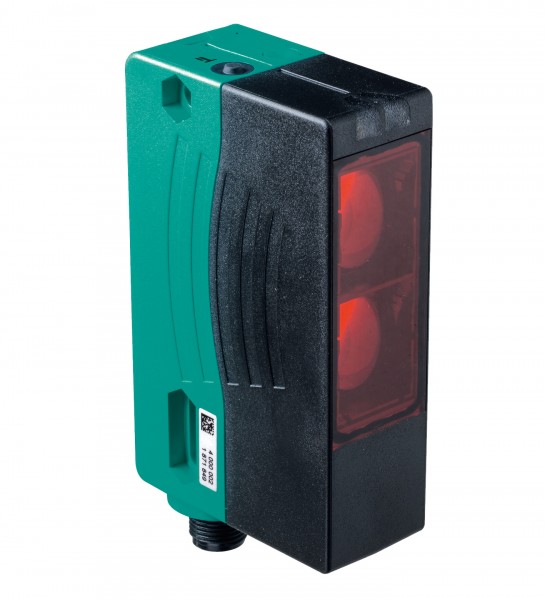

Transmitter for thru-beam sensor LD28/LV28-F1/47/76a/82b/105

the receiver is PN  109978  LV28-F1/47/82b/105

Universal thru-beam sensor, large housing design, 30 m detection range, red light, 25 kHz transmission frequency, light/dark on, DC version, 2 PNP outputs, test input, pre-fault output, M18 plug

Technical specifications:

  • Effective detection range: 30 m
  • Operating voltage: 10 – 30 VDC
  • Test input
  • Connection: connector M12, 4-pin
  • Degree of protection: IP67
  • Accessories (not included): Female connector M12 (V1), mounting bracket

PN: 109980
