OnlyOne SSE-Secure Separation

Product information "OnlyOne SSE-Secure Separation"

Access to certain areas, such as courthouses or IT buildings, banks and museums, is in many cases sub- ject to a specific security requirement. As a rule, gate systems are used that may only be entered individ- ually, one at a time. The OnlyOne SSE System from Sensotek ensures reliable separation of people, with a focus on increased security.

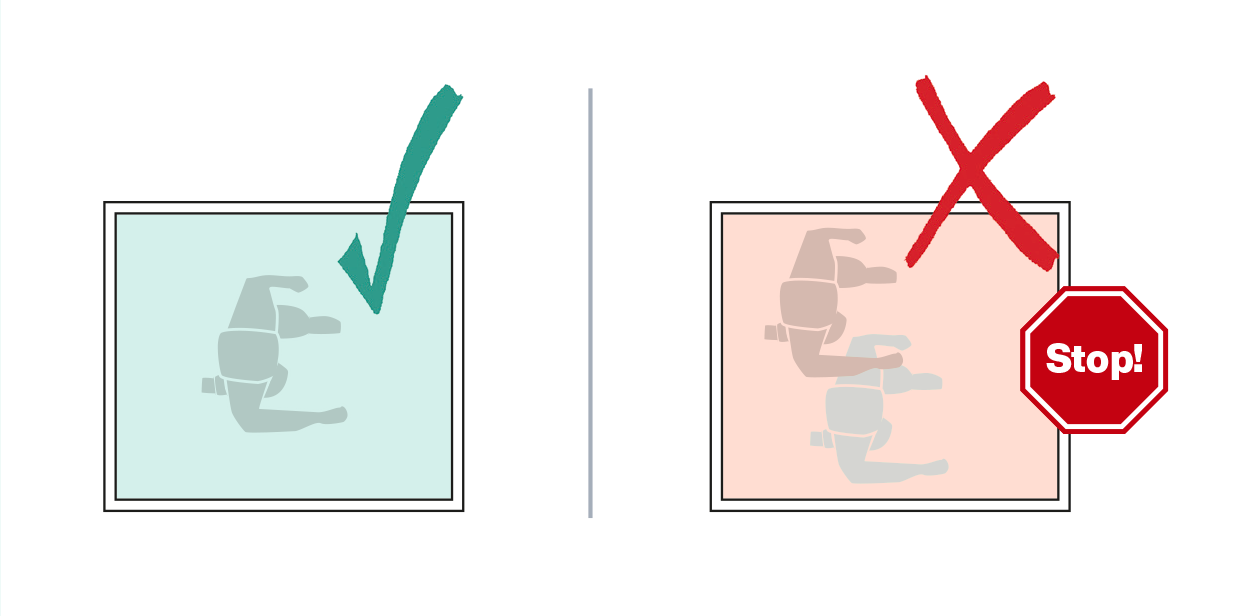

Thanks to the overhead mounting position, the 3D-ToF sen- sor allows complete monitoring of the gate area without any interfering obstacles. Establishing the presence of one or more persons enables release or rejection. Likewise, objects or persons located in the gate area are reliably detected and enable the system function to be blo- cked. Covering the sensor leads to a sabotage message, which can be evaluated separately or combined.

Highlights:

  • 3D-ToF sensor optimized for separation solutions
  • No inclusion of personalizable (image) data of the respective person - DSGVO-compliant (General Data Protection Regulation)
  • Compact data processing runs completely inside the sensor
  •  Practically independent of environmental influences
  • Adaptable to a wide range of door system types and sizes
  • Simplest integration into existing systems thanks to the provision of all common interface variants – retro- fit suitable
  • Particularly functional solution for maximum safe people separation with simultaneous high throughput rate of people at the access control system

Technical Data:

  • Operating voltage: 24 VDC +/-10%
  • Signal output: ACC, REJ, SAB; semiconductor & relay
  • Signal input: 2 x PNP
  • Connection: removable screw terminals, 4-pole and 5-pole
  • Installation height: 2.00 m - 2.40 m
  • Konverterbox included

PN: 400-0010


Questions to the product?

Talk to us: +49 7163 93926-77
Volume discounts on request by phone


Product safety information
