TOF-1St

Product information "TOF-1St"

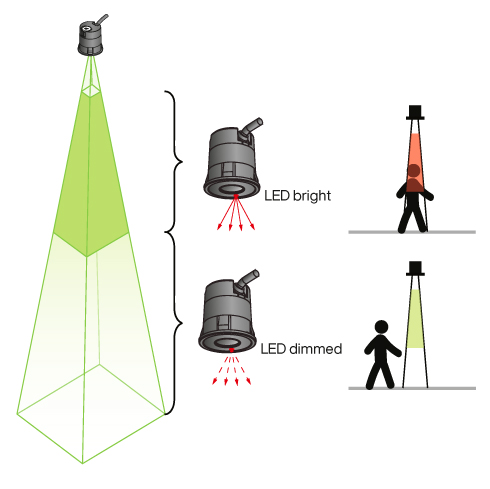

Model with Potentiometer for Adjusting the Detection Range

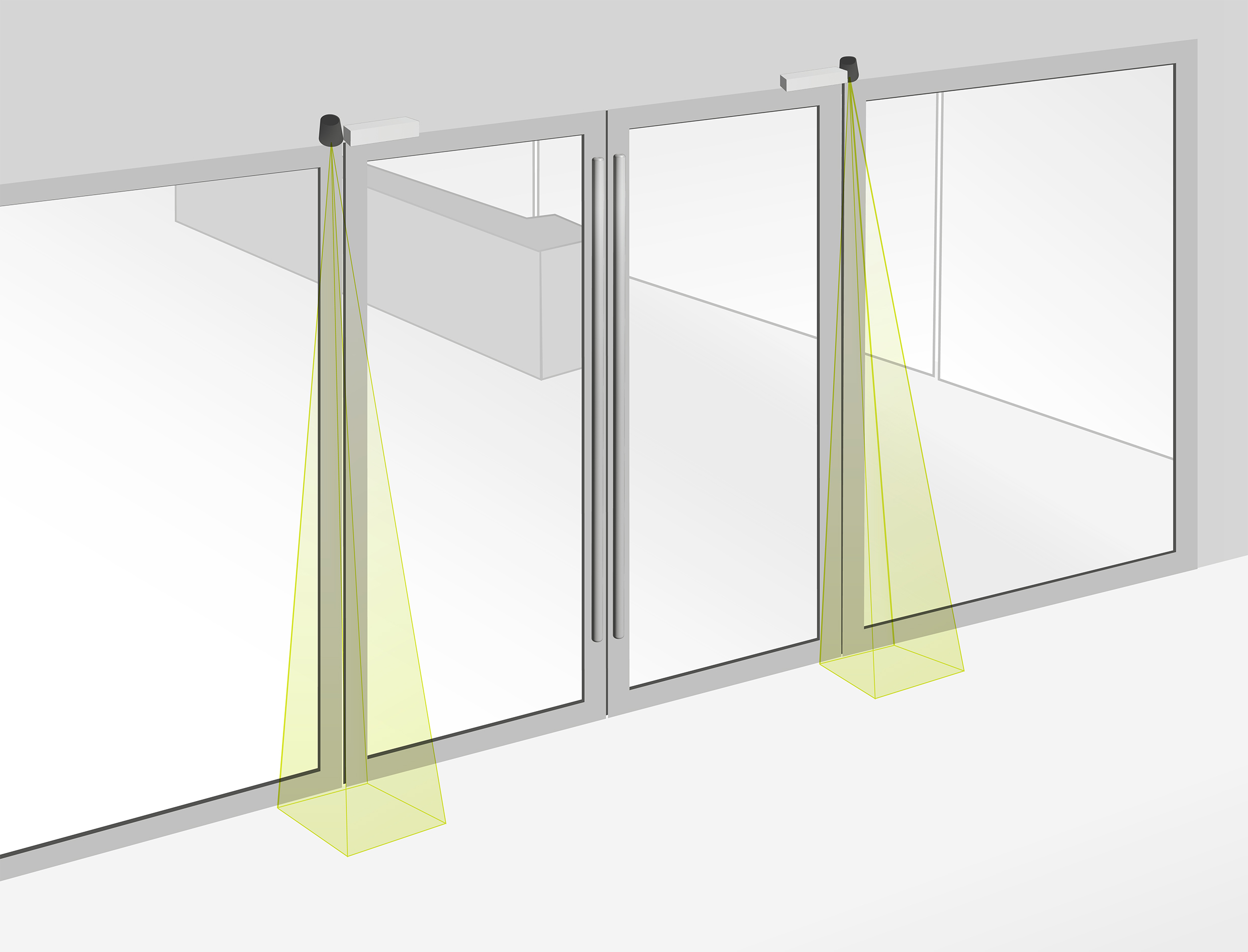

The Time-of-Flight sensor is a distance-measuring device that functions as a light scanner for object detection. This means it can also detect reflective objects and is not sensitive to ambient light.

Technical Specifications:

  • Operating Voltage: 10...30 VDC

  • Range: 0.2...6.0 m

  • Solid-State Relay: NO/NC adjustable

  • Ambient Light Immunity: 100,000 Lux

  • Operating Temperature: -40... +60 °C

  • Protection Class: IP65

Item Number: 10001720
