CBB8-18GS75-E2

CBB8-18GS75-E2
Total price: €143.94
Net price: €120.96

Prices incl. VAT plus shipping costs

Availability Ready to ship today,
Delivery time appr. 1-3 workdays

2 items in stock
  • 237036
Questions to the product?
Talk to us: +49 7163 93926-77
Volume discounts on request by phone
Capacitive sensor Series: Cylindrical type, Housing material: Stainless steel 1.4305 / AISI... more
Product information "CBB8-18GS75-E2"

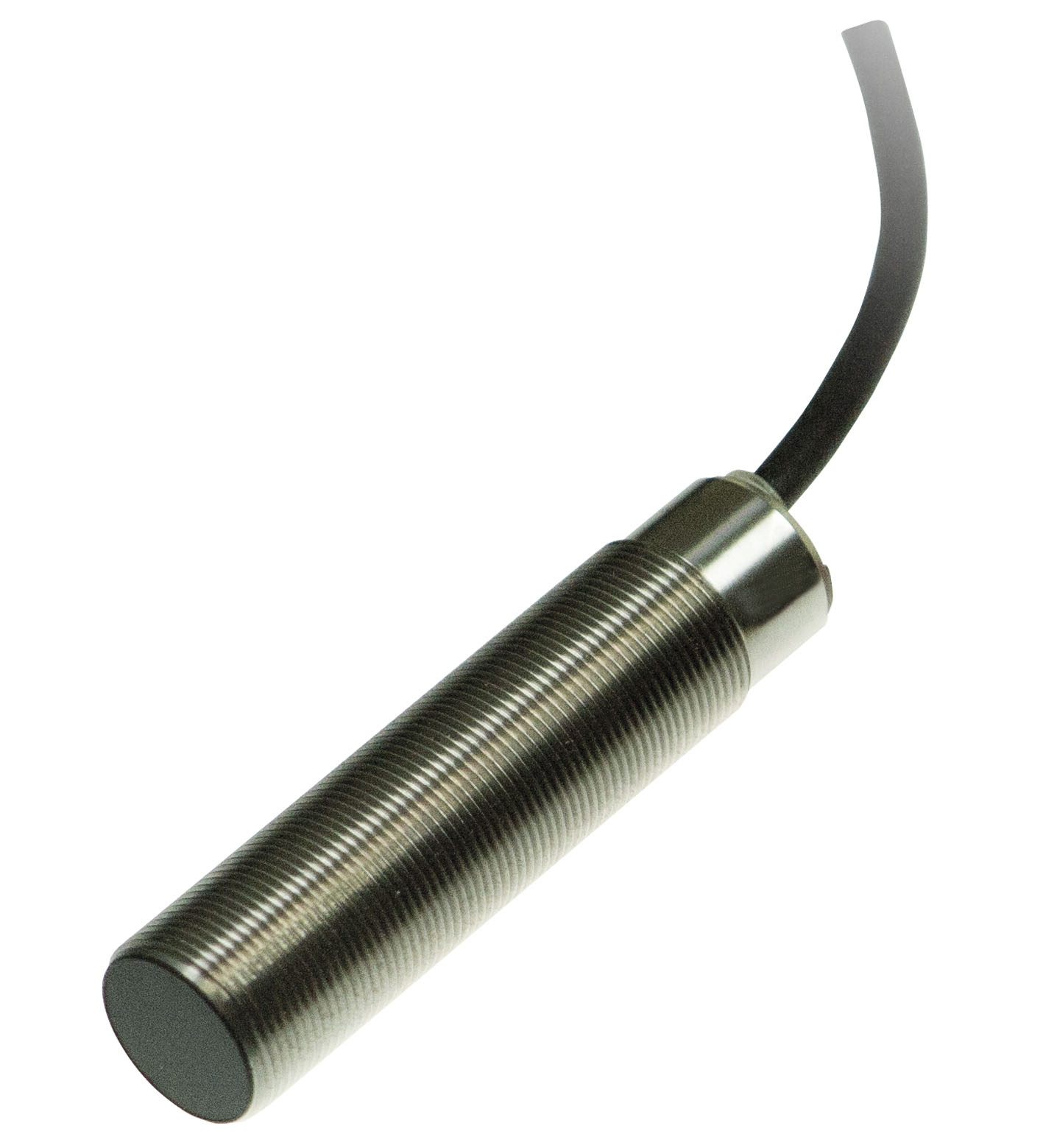

Capacitive sensor

Series: Cylindrical type, Housing material: Stainless steel 1.4305 / AISI 303, Connection type: cable PUR , 2 m, Output type: 3-wire, Installation: flush, Type of voltage: DC

Technical specifications:

• Operating voltage: 10…30 V DC
• Rated operating distance: 1...8 mm, flush
• Signal output: PNP, NO
• Connection: Fixed cable 2m PUR
• Degree of protection: IP67

Technical specification:
  • Cable length: 2 m
  • Installation: Flush
  • Detection principe: Capacitive
  • Special: Detection range adjustable
  • Cable sheath: PUR
  • Ambient temperature (maximum): +85 °C
  • Cylindrical Version: Threaded sleeve M18
  • Max. Detection Range: 5 mm ... < 10 mm
  • Housing Style: Cylindrical
  • Connection: 3-wire
  • Version: Cylindrical
  • Degree of Protection: IP67
  • Switching function: Normally-open (NO)
  • Approvals: CCC, UL
  • Electrical Connection Type: Fixed cable
  • Power Supply: DC
  • Voltage: DC
  • Ambient temperature (minimum): -25 °C
  • Output Type: PNP
  • Housing Material: Stainless steel
