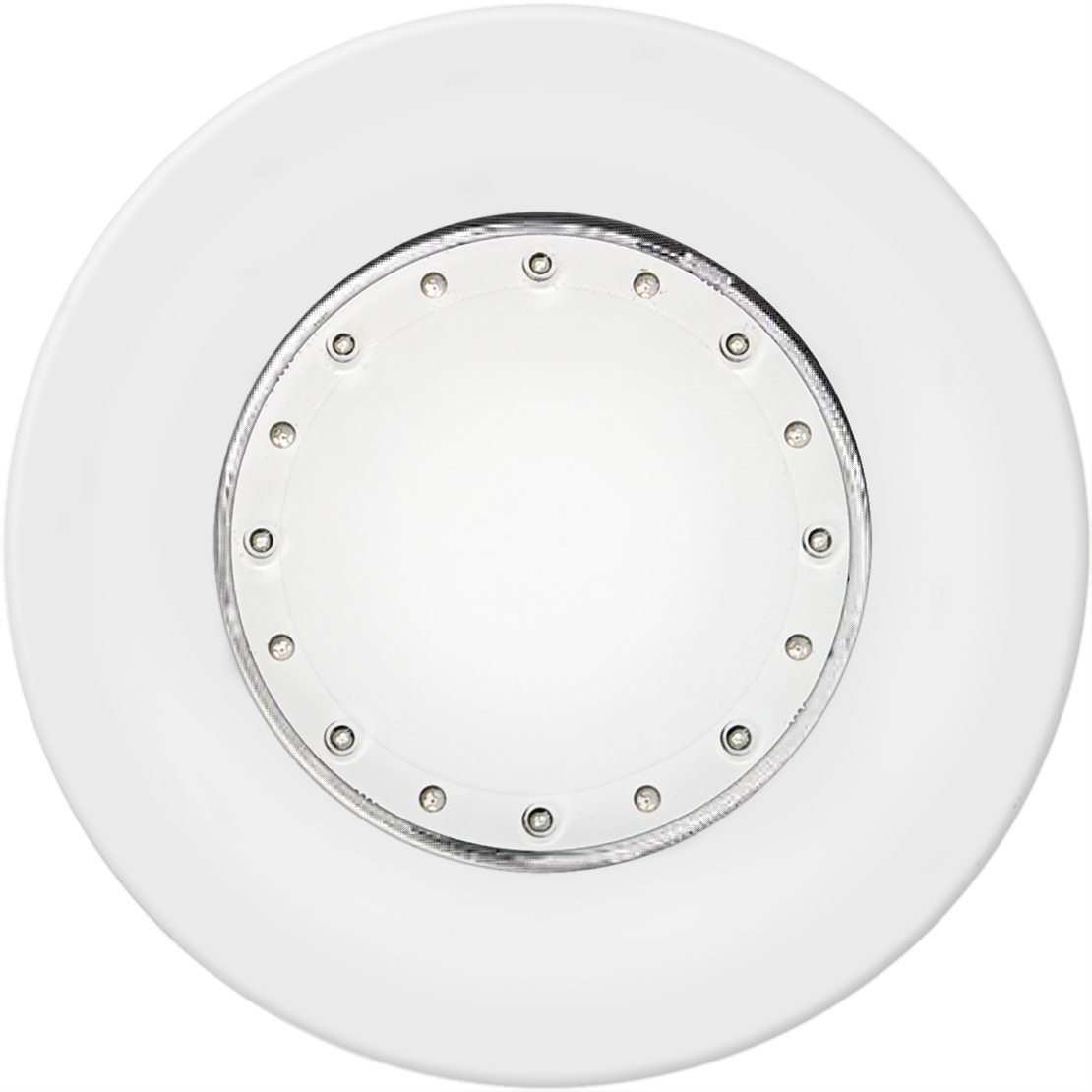

KTTA - Capacitive Switch Dynamic with glass front - E1 approval

KTTA - Capacitive Switch Dynamic with glass front - E1 approval
Total price: €141.32
Net price: €118.76

Prices incl. VAT plus shipping costs

Availability Delivery time approx. 5 working days

Not in stock

Pictogram:

Please select the pictogram

  • 903
Questions to the product?
Talk to us: +49 7163 93926-77
Volume discounts on request by phone
Version with E1 approval Assembly on wall or behind glass Switches by touching Optical... more
Product information "KTTA - Capacitive Switch Dynamic with glass front - E1 approval"

Version with E1 approval

Assembly on wall or behind glass
Switches by touching
Optical feedback by LED
Water- and oil-tight
Fixed cable
Individually configurable: Pictogramm

 Pictograms:

Without, Hand, Wheelchair, Door, Double arrow

 Technical specifications:

  • Operating voltage:  16,8… 32 V DC
  • Signal output: PNP
  • Duration output signal: 300 msec
  • Connection: Fixed cable 0,2 m PUR
  • Ambient temperature: -30 … +80°C
  • Degree of protection: IP69K at the front side
  • Version with E1 approval

 Pictograms are available during the order transaction
